Nginx Proxy Manager
Reverse Proxy + Free SSL

Route all your self-hosted services through a single reverse proxy with automatic Let's Encrypt SSL certificates — no command line required for day-to-day management.

Intermediate ~45 minutes Docker required Domain name required
Nginx Docker Let's Encrypt Cloudflare SSL / TLS Reverse Proxy

 Table of Contents

  1. Overview
  2. Prerequisites
  3. Install NPM via Docker Compose
  4. First Login & Setup
  5. Create a Wildcard SSL Certificate
  6. Add a Proxy Host
  7. Hosting a Static Website
  8. Advanced Tab Config
  9. Troubleshooting
  10. References
📖
Overview

Nginx Proxy Manager (NPM) is a Docker-based web UI for managing an Nginx reverse proxy. It handles SSL certificate issuance and renewal automatically, routes traffic to your backend services by hostname, and supports advanced Nginx config snippets without requiring you to write raw config files.

The core use case: you have multiple services running on your homelab (Plex on port 32400, Portainer on 9443, Jellyfin on 8096, etc.) and you want them all accessible via clean HTTPS URLs like plex.yourdomain.com, portainer.yourdomain.com — all with valid SSL certs.

NPM is the easiest entry point for reverse proxying in a homelab. If you need more advanced features (load balancing, access control lists, header manipulation at scale), Traefik is the next step up.
✅
Prerequisites
  • Docker and Docker Compose installed on a Linux host (or Unraid/Proxmox LXC)
  • A domain name pointed to your server's public IP (A record or Cloudflare proxy)
  • Ports 80 and 443 forwarded from your router to the NPM host
  • (Optional but recommended) Cloudflare API token for DNS-01 challenge wildcards
🐳
Install via Docker Compose

Create a directory for NPM and add a docker-compose.yml file:

version: '3.8' services: npm: image: jc21/nginx-proxy-manager:latest restart: unless-stopped ports: - "80:80" # HTTP - "443:443" # HTTPS - "81:81" # NPM Admin UI volumes: - ./data:/data - ./letsencrypt:/etc/letsencrypt environment: DB_SQLITE_FILE: "/data/database.sqlite"

Then start it:

docker compose up -d
Make sure no other service is using ports 80 or 443 on the host. If you run NPM on Unraid alongside other containers, check for port conflicts before deploying.
🔑
First Login
  1. 1

    Open the Admin UI

    Navigate to http://<your-server-ip>:81 in your browser. Give it a minute to initialize on first launch.

  2. 2

    Login with Default Credentials

    Email: admin@example.com  / Password: changeme

  3. 3

    Change Your Credentials Immediately

    NPM will prompt you to set a new email and password. Do this before adding any proxy hosts.

🔒
Create a Wildcard SSL Certificate

A wildcard cert (*.yourdomain.com) covers all subdomains with one certificate. This requires the DNS-01 challenge — Cloudflare makes this easy.

  1. 1

    Get a Cloudflare API Token

    In Cloudflare dashboard → My Profile → API Tokens → Create Token. Use the "Edit zone DNS" template and scope it to your specific zone (domain).

  2. 2

    Add SSL Certificate in NPM

    In NPM → SSL Certificates → Add SSL Certificate → Let's Encrypt. Enter your domain as *.yourdomain.com and also yourdomain.com. Select Cloudflare DNS as the challenge type and enter your API token.

  3. 3

    Wait for Issuance

    Let's Encrypt will create a DNS TXT record in Cloudflare to prove domain ownership, then issue the cert. This usually takes 30–60 seconds. Once issued, the cert auto-renews.

With a wildcard cert you only need one cert for all subdomains. Add new services at any time without requesting a new certificate.
🔀
Add a Proxy Host

A proxy host maps a hostname to a backend service. For example: plex.yourdomain.com → http://10.10.10.5:32400

  1. 1

    Hosts → Add Proxy Host

    In NPM, go to Proxy Hosts and click Add Proxy Host.

  2. 2

    Fill in Domain & Forward Info

    Domain Names: service.yourdomain.com
    Forward Hostname/IP: your service's local IP
    Forward Port: the service's port
    Enable Block Common Exploits and Websockets Support if needed.

  3. 3

    Assign SSL Certificate

    On the SSL tab, select your wildcard certificate. Enable Force SSL to redirect all HTTP traffic to HTTPS, and enable HTTP/2 Support.

NPM proxy host configuration
NPM proxy host settings — domain names and forwarding configuration

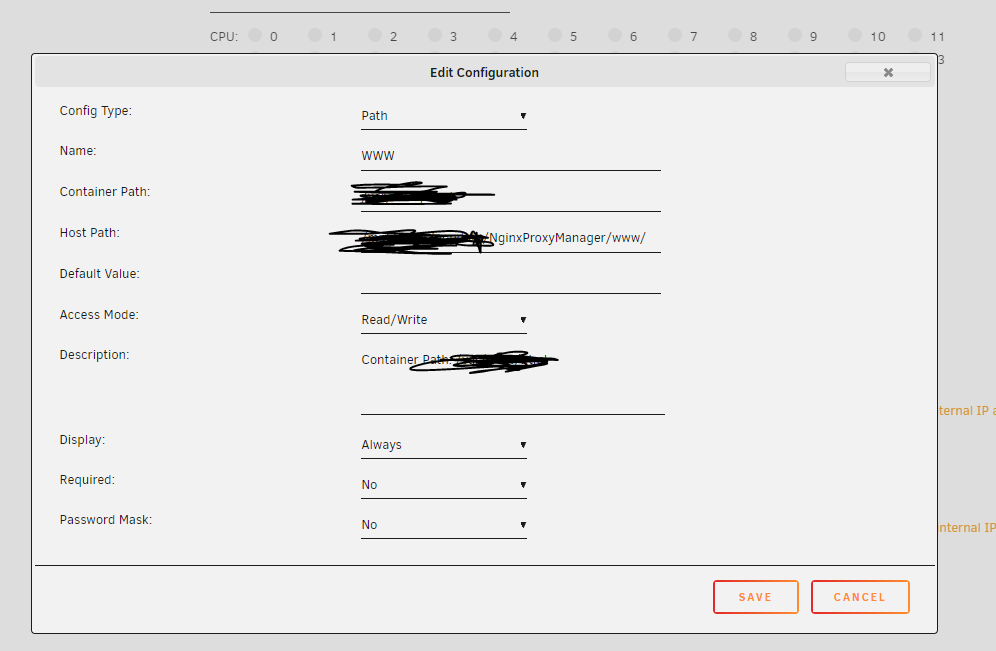

NPM path configuration
NPM path configuration for volume-mounted static sites
🌐
Hosting a Static Website

To serve a static HTML site via NPM (rather than proxying to a backend container), mount your files into the NPM container and configure the location root in the Advanced tab.

  1. 1

    Mount Site Files in docker-compose.yml

    Add a volume entry pointing to your site folder:

    volumes: - ./data:/data - ./letsencrypt:/etc/letsencrypt - /opt/mysite:/opt/mysite:ro # read-only site files
  2. 2

    Set Forward to localhost:80

    When creating the proxy host, set Forward to 127.0.0.1 port 80. This tells Nginx to serve from a location block, not a backend.

  3. 3

    Add Advanced Nginx Config

    In the Advanced tab, paste the following, replacing the path with your actual site directory:

    root /opt/mysite; index index.html; location / { try_files $uri /index.html; }

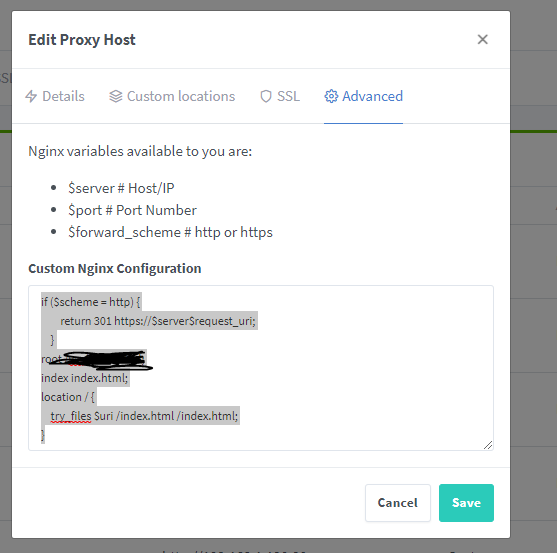

NPM advanced path configuration
Advanced tab in NPM proxy host edit — root path and try_files config for SPA hosting
⚙️
Advanced Configuration Tips

Force HTTPS redirect: Add this to the Advanced tab to ensure all HTTP traffic redirects to HTTPS:

if ($scheme = http) { return 301 https://$server_name$request_uri; }

Custom headers (security hardening):

add_header X-Frame-Options "SAMEORIGIN"; add_header X-Content-Type-Options "nosniff"; add_header Referrer-Policy "strict-origin-when-cross-origin"; add_header Permissions-Policy "camera=(), microphone=(), geolocation=()";

Large file uploads (Plex, Nextcloud):

client_max_body_size 0; proxy_request_buffering off;
Cloudflare users: Streaming video through Cloudflare's proxy violates their ToS. Set DNS records to "DNS Only" (grey cloud) for media services like Plex, Emby, and Jellyfin — or use a Cloudflare Tunnel with proper streaming exemptions.
🔧
Troubleshooting

502 Bad Gateway: NPM can reach your host but not the service. Verify the backend container is running and the port is correct. If using container names, make sure NPM is on the same Docker network.

SSL cert issuance fails (DNS challenge): Double-check your Cloudflare API token permissions and that the domain zone matches. Check NPM container logs: docker logs npm 2>&1 | tail -50

HTTP-01 challenge fails (port 80 blocked): Switch to DNS-01 challenge via Cloudflare instead of HTTP challenge. Many ISPs block port 80 on residential connections.

Wildcard cert not working for root domain: When creating the cert, enter both *.yourdomain.com AND yourdomain.com in the same cert — wildcards don't cover the apex domain.

Categories / organization: NPM doesn't natively support folders for proxy hosts. With many domains it becomes unwieldy — a feature requested by the community. Workaround: use consistent naming conventions (service.domain.com vs. admin-service.domain.com).

📚
